edgeNAT我们在部落分享过几次，这是一家2019年成立的国人主机商，提供的产品有VPS主机和独立服务器租用，商家在上个月对香港VPS带宽进行了调整免费升级，CN2+BGP网络，最低配置从5M起，今天做个简单的测试，方便大家参考。今天测试的VPS主机开设在香港沙田机房，中国电信来回CN2线路，移动联通直连。
官方网站：www.edgenat.com
主机配置

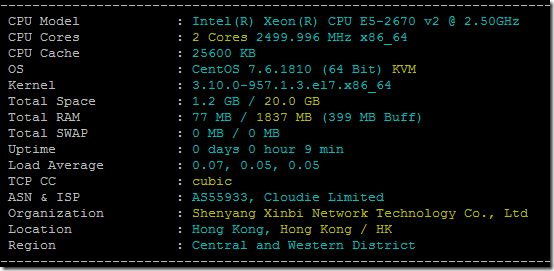

本文所涉主机基于KVM架构，配置为双核CPU+2GB内存+20GB硬盘，5M上行带宽，这也是目前官网销售的最低套餐，操作系统为纯净CentOS7.6，未安装加速工具
基本测试
越来越多的商家不再提供独立的VPS管理系统，选择在会员中心一站式管理主机，edgeNAT也不例外，商家VPS管理页面包含了常用的开关机、重启、重装系统、重置密码等基本功能，对于主机的概况、监控、基本设置、安全组等也均具备。
IO/带宽测试

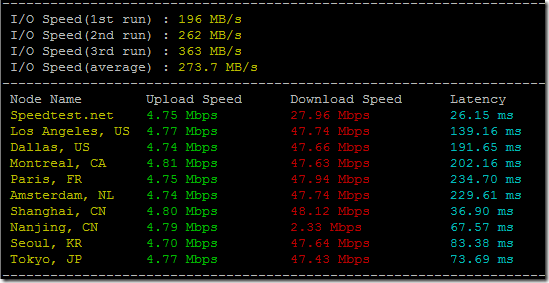

IO/带宽使用一键包测试，分别2个一键包，一个全国反馈，一个侧重于国内节点，首先看第一个。

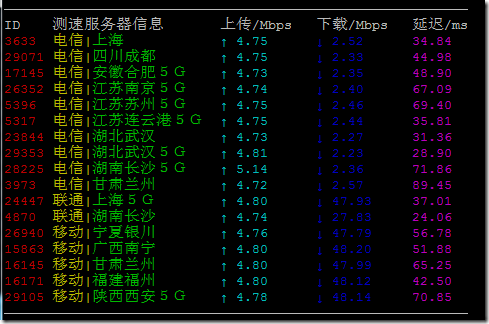

上行带宽与标注一致，下行最高近50Mbps，下面主要是国内各地测试。
商家带宽均与套餐一致，基本上可以跑满峰值。
去程路由

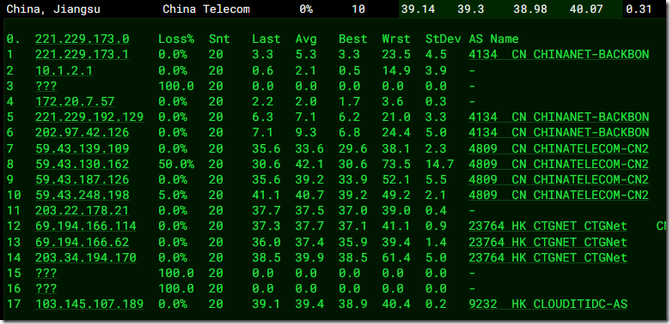

下面是电信去程路由信息，CTGNet CN2
联通去程直连，AS4837

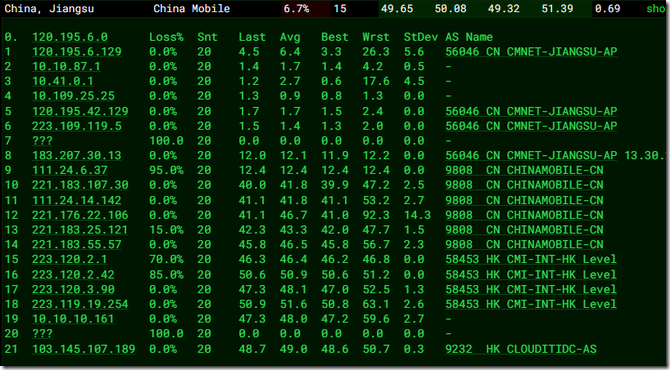

移动去程，CMI线路直连
回程路由
回程路由直接在VPS主机中运行一键包，同样是电信CN2，移动联通直连的情况。
北京电信 traceroute to 219.141.147.210 (219.141.147.210), 30 hops max, 32 byte packets 1 * 2 10.82.3.254 0.89 ms * LAN Address 6 203.22.178.10 1.90 ms * China, Hong Kong, ChinaTelecom 7 59.43.250.173 35.46 ms * China, Beijing, ChinaTelecom 8 59.43.188.77 38.18 ms * China, Beijing, ChinaTelecom 9 59.43.132.17 38.33 ms * China, Beijing, ChinaTelecom 12 2.254.120.106.static.bjtelecom.net (106.120.254.2) 61.64 ms AS4847 China, Beijing, ChinaTelecom 13 bj141-147-210.bjtelecom.net (219.141.147.210) 38.60 ms AS4847 China, Beijing, ChinaTelecom ---------------------------------------------------------------------- 上海电信 traceroute to 202.96.209.133 (202.96.209.133), 30 hops max, 32 byte packets 1 * 2 10.82.3.254 1.65 ms * LAN Address 6 203.22.178.66 1.29 ms * China, Hong Kong, ChinaTelecom 7 59.43.183.81 29.80 ms * China, Shanghai, ChinaTelecom 10 61.152.24.198 28.33 ms AS4812 China, Shanghai, ChinaTelecom 11 * 12 180.169.255.122 34.03 ms AS4812 China, Shanghai, ChinaTelecom 13 ns-pd.online.sh.cn (202.96.209.133) 28.33 ms AS4812 China, Shanghai, ChinaTelecom ---------------------------------------------------------------------- 深圳电信 traceroute to 58.60.188.222 (58.60.188.222), 30 hops max, 32 byte packets 1 * 2 10.82.3.254 0.65 ms * LAN Address 6 203.22.178.42 1.62 ms * China, Hong Kong, ChinaTelecom 7 59.43.248.249 7.33 ms * China, Guangdong, Guangzhou, ChinaTelecom 8 * 9 59.43.130.145 8.34 ms * China, Guangdong, Guangzhou, ChinaTelecom 10 59.43.132.118 14.31 ms * China, Guangdong, Shenzhen, ChinaTelecom 11 106.104.38.59.broad.fs.gd.dynamic.163data.com.cn (59.38.104.106) 14.75 ms AS4134 China, Guangdong, Shenzhen, ChinaTelecom 12 * 13 58.60.188.222 13.56 ms AS4134 China, Guangdong, Shenzhen, ChinaTelecom ---------------------------------------------------------------------- 北京联通 traceroute to 202.106.50.1 (202.106.50.1), 30 hops max, 32 byte packets 1 * 2 10.82.3.254 0.79 ms * LAN Address 6 202.77.23.25 6.90 ms AS10099 China, Hong Kong, ChinaUnicom 7 219.158.10.53 10.67 ms AS4837 China, Guangdong, Guangzhou, ChinaUnicom 8 219.158.115.121 44.24 ms AS4837 China, Beijing, ChinaUnicom 9 219.158.3.177 40.65 ms AS4837 China, Beijing, ChinaUnicom 10 219.158.4.173 43.45 ms AS4837 China, Beijing, ChinaUnicom 11 202.96.12.22 39.20 ms AS4808 China, Beijing, ChinaUnicom 12 202.106.50.1 38.49 ms AS4808 China, Beijing, ChinaUnicom ---------------------------------------------------------------------- 上海联通 traceroute to 210.22.97.1 (210.22.97.1), 30 hops max, 32 byte packets 1 * 2 10.82.3.254 0.74 ms * LAN Address 6 43.252.86.129 4.49 ms AS10099 China, Hong Kong, ChinaUnicom 7 219.158.20.97 10.63 ms AS4837 China, Hong Kong, ChinaUnicom 8 219.158.111.221 39.35 ms AS4837 China, Shanghai, ChinaUnicom 9 219.158.113.122 38.19 ms AS4837 China, Shanghai, ChinaUnicom 10 219.158.113.105 39.06 ms AS4837 China, Shanghai, ChinaUnicom 11 * 12 139.226.201.146 40.34 ms AS17621 China, Shanghai, ChinaUnicom 13 210.22.97.1 37.42 ms AS17621 China, Shanghai, ChinaUnicom ---------------------------------------------------------------------- 深圳联通 traceroute to 210.21.196.6 (210.21.196.6), 30 hops max, 32 byte packets 1 * 2 10.82.3.254 0.73 ms * LAN Address 6 202.77.23.25 9.75 ms AS10099 China, Hong Kong, ChinaUnicom 7 219.158.10.53 7.36 ms AS4837 China, Guangdong, Guangzhou, ChinaUnicom 8 219.158.97.30 7.25 ms AS4837 China, Guangdong, Guangzhou, ChinaUnicom 9 * 10 221.4.0.130 37.77 ms AS17816 China, Guangdong, Shenzhen, ChinaUnicom 11 120.80.144.38 15.49 ms AS17623 China, Guangdong, Shenzhen, ChinaUnicom 12 dns2-ftcg.gdsz.cncnet.net (210.21.196.6) 16.19 ms AS17623 China, Guangdong, Shenzhen, ChinaUnicom ---------------------------------------------------------------------- 北京移动 traceroute to 221.179.155.161 (221.179.155.161), 30 hops max, 32 byte packets 1 * 2 10.82.3.254 2.96 ms * LAN Address 6 223.120.2.86 7.15 ms AS58453 China, Guangdong, Guangzhou, ChinaMobile 7 223.120.22.29 36.69 ms AS58453 China, Guangdong, Guangzhou, ChinaMobile 8 221.183.55.110 36.78 ms AS9808 China, Beijing, ChinaMobile 9 221.183.25.201 41.62 ms AS9808 China, Beijing, ChinaMobile 10 221.183.89.118 48.62 ms AS9808 China, Beijing, ChinaMobile 11 221.183.46.174 48.15 ms AS9808 China, Beijing, ChinaMobile 12 * 13 cachedns03.bj.chinamobile.com (221.179.155.161) 49.84 ms AS56048 China, Beijing, ChinaMobile ---------------------------------------------------------------------- 上海移动 traceroute to 211.136.112.200 (211.136.112.200), 30 hops max, 32 byte packets 1 * 2 10.82.3.254 0.65 ms * LAN Address 6 223.120.2.102 7.33 ms AS58453 China, Guangdong, Guangzhou, ChinaMobile 7 223.120.22.9 34.49 ms AS58453 China, Shanghai, ChinaMobile 8 221.183.55.42 37.13 ms AS9808 China, Shanghai, ChinaMobile 9 221.176.22.205 34.75 ms AS9808 China, Shanghai, ChinaMobile 10 221.176.22.33 39.09 ms AS9808 China, Shanghai, ChinaMobile 11 111.24.3.89 37.03 ms AS9808 China, Shanghai, ChinaMobile 12 * 13 221.181.125.85 41.21 ms AS24400 China, Shanghai, ChinaMobile 14 211.136.190.234 38.47 ms AS24400 China, Shanghai, ChinaMobile 15 211.136.112.252 37.82 ms AS24400 China, Shanghai, ChinaMobile 16 211.136.112.200 60.13 ms AS24400 China, Shanghai, ChinaMobile ---------------------------------------------------------------------- 深圳移动 traceroute to 120.196.165.24 (120.196.165.24), 30 hops max, 32 byte packets 1 * 2 10.82.3.254 0.55 ms * LAN Address 6 223.120.2.102 7.18 ms AS58453 China, Guangdong, Guangzhou, ChinaMobile 7 221.183.55.98 7.58 ms AS9808 China, Guangdong, Guangzhou, ChinaMobile 8 221.176.24.61 9.52 ms AS9808 China, Guangdong, Guangzhou, ChinaMobile 9 221.176.22.237 9.65 ms AS9808 China, Guangdong, Guangzhou, ChinaMobile 10 111.24.5.165 11.24 ms AS9808 China, Guangdong, Guangzhou, ChinaMobile 11 221.183.71.70 14.62 ms AS9808 China, Guangdong, ChinaMobile 12 221.183.110.166 13.94 ms AS9808 China, ChinaMobile 13 ns6.gd.cnmobile.net (120.196.165.24) 17.05 ms AS56040 China, Guangdong, Shenzhen, ChinaMobile ---------------------------------------------------------------------- 成都教育网 traceroute to 202.112.14.151 (202.112.14.151), 30 hops max, 32 byte packets 1 * 2 10.82.3.254 0.63 ms * LAN Address 6 203.22.178.38 1.69 ms * China, Hong Kong, ChinaTelecom 7 59.43.249.30 27.10 ms * China, Shanghai, ChinaTelecom 8 * 9 59.43.130.205 32.09 ms * China, Shanghai, ChinaTelecom 10 * 11 202.97.19.62 33.18 ms AS4134 China, Hubei, Wuhan, ChinaTelecom 14 101.4.114.174 32.92 ms AS4538 China, Beijing, CHINAEDU 15 101.4.115.201 55.29 ms AS4538 China, Beijing, CHINAEDU 16 101.4.112.14 81.50 ms AS4538 China, Shaanxi, Xi'an, CHINAEDU 22 202.112.14.151 81.87 ms AS24355 China, Sichuan, Chengdu, CHINAEDU
延迟测试

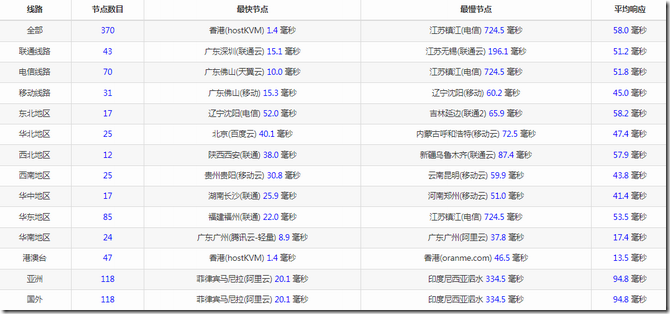

使用IPIP.NET通过中国和亚洲地区370个节点ping测试，香港直连的延迟还是没话说。
总的来说，规矩的香港直连线路，机器也支持安装Linux或者Windows操作系统，除了香港VPS外，商家还有韩国/美国VPS及独立服务器租用业务，感兴趣的可以参考：
